How NASA-STD-6030 is Transforming Additive Manufacturing for Aerospace Heat Exchangers

Introduced in 2021, NASA-STD-6030 has redefined the certification landscape for additive manufacturing (AM) in aerospace, especially for mission-critical components such as heat exchangers.

This comprehensive standard establishes a rigorous framework for ensuring safety, repeatability, and performance in AM parts intended for human spaceflight and high-consequence applications.

Additionally, NASA-STD-630 integrates many existing NASA and industry standards such as AS9100, ASTM International (formerly the American Society for Testing and Materials) and AMS (Aerospace Material Specifications).

For AM heat exchangers (HX), this represents both a challenge and an opportunity: to meet stringent aerospace requirements while leveraging the unique benefits of AM.

Understanding NASA-STD-6030: A New Benchmark for Additive Manufacturing

NASA-STD-6030 addresses the process-sensitive and data-scarce nature of AM by introducing a highly structured, qualification-driven approach. It defines clear requirements across two core pillars:

• Foundational Process Controls (FPCs): Covers all aspects of facility, process and material qualification and control that is independent of any specific component. Established as part of a business wide 6030 qualification.

• Part Production Controls (PPCs):  Part specific design, qualification testing and production controls to ensure components meet requirements. Using outputs of the FPCs, it ensures robust framework is in place to support the production of quality parts.

Together, these pillars form a closed-loop system that mitigates variability and enhances reliability for space-bound AM components.

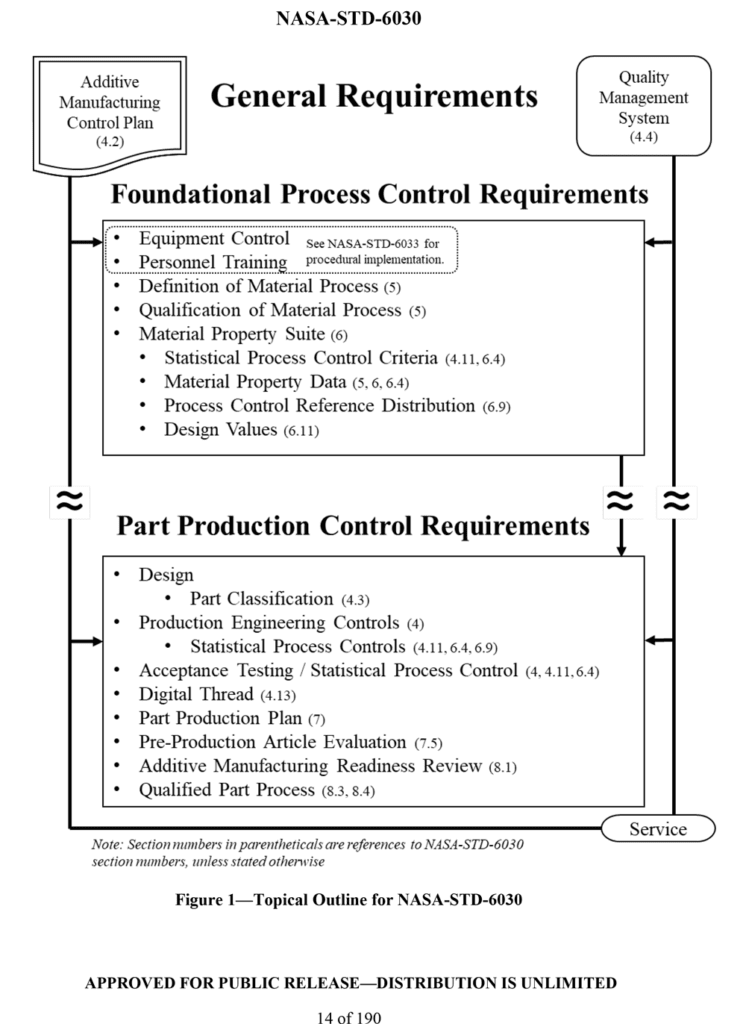

The general requirements for NASA-STD-6030 is broken into two core sections. Source: https://standards.nasa.gov/sites/default/files/standards/NASA/Baseline/0/2021-04-21_nasa-std-6030-approveddocx.pdf

Core Requirements of NASA-STD-6030 and Their Impact

1. Process Control and Qualification

NASA-STD-6030 mandates the creation of a Qualified Material Process (QMP), encompassing feedstock consistency, machine calibration, and process stability. Real-time monitoring through Statistical Process Control (SPC) and the use of Process Control Reference Distributions (PCRDs) help define material allowables, reinforcing traceability.

2. Risk-Based Part Classification

Every AM component is classified—Class A, B, or C—based on the consequences of failure. Heat exchangers, which play a critical role in thermal regulation and propulsion systems and can often fall into Class A, the strictest classification. These parts require stringent qualification programs and quality assurance processes, including specialised HIP post-processing and CT scanning for non-destructive evaluation (NDE), with multiple witness sample testing on all builds.

3. Integrated Documentation Framework

An Additive Manufacturing Control Plan (AMCP) acts as the central control document, outlining how design, production, testing, and quality assurance intersect. Alongside the Part Production Plan (PPP), these documents create a data-rich, auditable trail essential for mission assurance.

NASA-STD-6030 provides a robust foundation for additive manufacturing (AM) in aerospace. Source: SpaceX

How NASA-STD-6030 Shapes Additive Manufacturing of Heat Exchangers

Additive manufacturing unlocks new capabilities in heat exchanger design: compact geometries, integrated microchannel networks, and monolithic construction that reduce joints and leakage risks. NASA-STD-6030 enables this innovation while enforcing the discipline required for aerospace reliability.

Design, Material and Process Requirements

Heat exchangers must manage extreme thermal and mechanical loads, often within constrained volumes. NASA-STD-6030 ensures:

• Facility consistency: With sub-standards like 6033 and AS9100, all aspects of operations have specified controls and process to minimise variation.

• Process repeatability: Material and process controls ensure designs are based on qualified data that can be reliably replicated in production.

• Geometric robustness: HXs require fine and precise geometry to maximise surface areas and heat transfer. 6030 design guidelines and qualification testing ensure designs are validated robustly to meet requirements.

Statistical Testing and Validation

SPC and witness testing validate key HX thermal and mechanical properties at room temperature and critical environmental conditions (cryogenic, hydrogen). For high-risk heat exchangers, proof tests such as hot-fire or pressure testing (e.g., 1,400 psia combustion conditions) are often mandated.

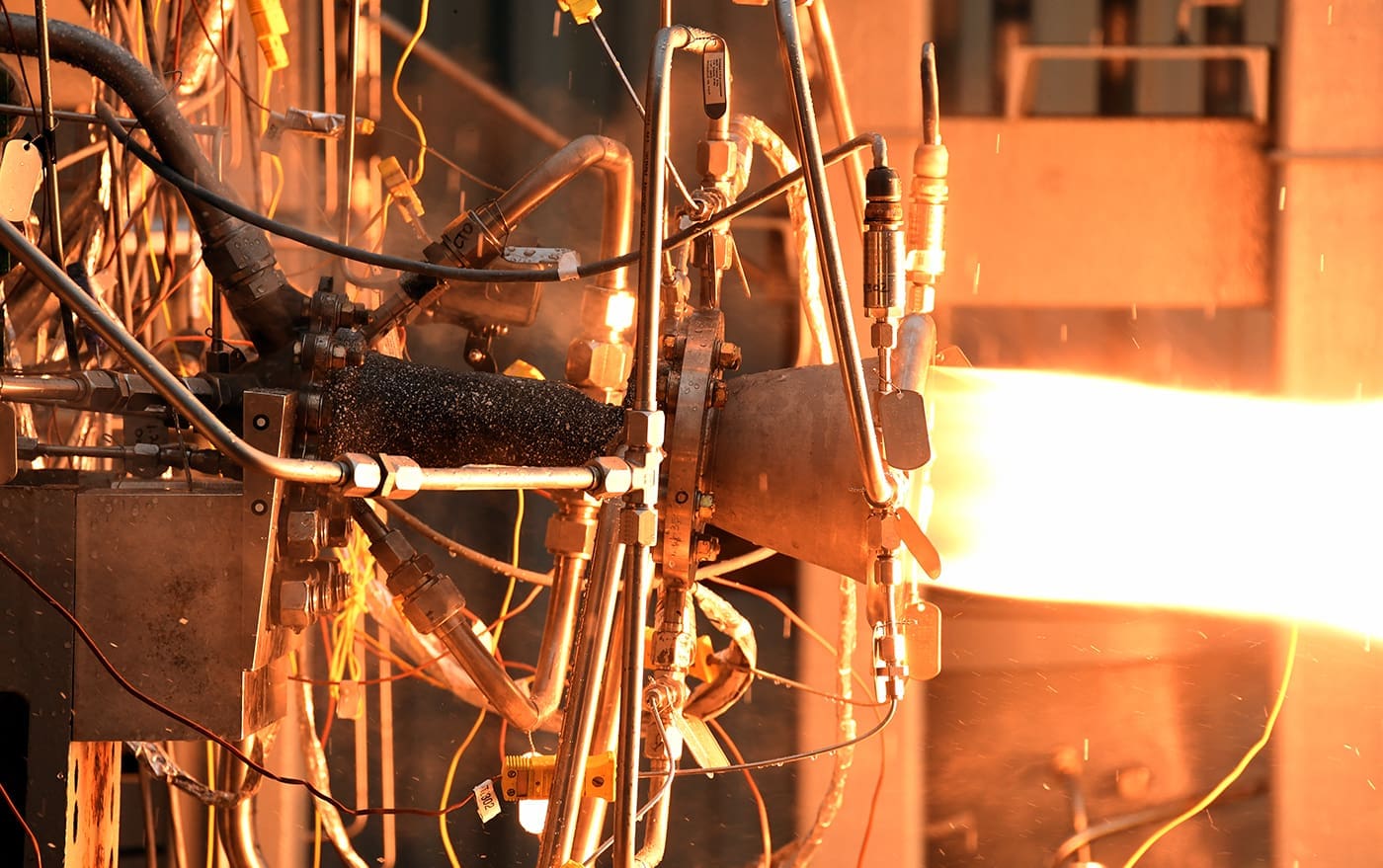

NASA Marshall Space Flight Center (MSFC) is taking full advantage of AM for rocket propulsion systems to reduce time-to-test and iterations through the design-fail-fix cycle. Source: NASA

Driving Innovation Within a Rigorous Framework

While NASA-STD-6030 is prescriptive in process control, it remains flexible in enabling advanced design:

• Monolithic Structures: AM enables joint-free construction, improving reliability and reducing weight.

• Microchannel Optimisation: Engineers can maximise surface-area-to-volume ratios to enhance heat transfer while minimising size and mass.

• Accelerated Design Cycles: Coupling CFD simulations with rapid prototyping shortens development timelines and improves iteration precision.

• Sustainability Gains: AM reduces material waste by up to 40%, aligning with aerospace decarbonisation initiatives.

However, this innovation must occur within a disciplined environment. Engineers must demonstrate that novel geometries and material pairings meet all reliability thresholds set by the standard.

While NASA-STD-6030 is prescriptive in process control, it remains flexible in enabling advanced design for aerospace. Source: NASA/Unsplash

Streamlining Certification and Enabling Industry Collaboration

NASA-STD-6030 is more than a regulatory checklist—it is a tool for aligning public and private aerospace efforts. The structured documentation and qualification pathways reduce ambiguity for contractors and suppliers, accelerating time-to-certification.

• Unified Certification Framework: AMCP and PPP provide a shared language between NASA and industry, enabling smoother handoffs and reducing development timelines.

• Production Accountability: The standard shifts more responsibility to production facilities, elevating the importance of operator training, cross-functional workflows, and data management.

• Commercial Influence: By establishing material allowables and inspection protocols, NASA-STD-6030 is already influencing practices in commercial spaceflight.

Conflux Technology: Demonstrating Compliance and Innovation

Conflux is actively contributing to the evolution of standardized frameworks by:

• Collaborating to co-develop AMCP methodologies

• Meeting existing AS9100 quality standards

• Developing new testing regimes for unique AM-enhanced HX geometry

• Applying AI-enhanced CT scanning for early defect detection and process refinement

• Designing for sustainability through material-efficient architectures

Turning Standardization Into Strategic Advantage

NASA-STD-6030 is setting the foundation for the future of aerospace manufacturing. For heat exchangers, it provides a clear path to mission readiness without stifling innovation. Conflux embraces the standard’s requirement and see them as enablers rather than barriers.

By combining precision engineering, robust validation, and strategic collaboration, additive manufacturing can deliver on its full potential to meet the demands of deep-space missions.
