Advanced Internal Validation for Additively Manufactured Heat Exchangers

For thermal engineers, product development teams, and qualification leads in automotive, motorsport, defence, and high-performance industrial systems, validating internal heat exchanger geometry can be a significant challenge. When performance depends on ultra-fine channels, thin walls, and tightly controlled internal features, external inspection alone cannot confirm whether the as-built component truly reflects the intended design.

This article explains why internal validation matters for additively manufactured heat exchangers, where conventional inspection methods often fall short, and how advanced imaging can strengthen design confidence, manufacturing control, and qualification readiness. It also outlines how Conflux works with specialist research and imaging partners, including ANSTO and CSIRO, to access the right inspection pathways for different stages of development and validation.

Australian Synchrotron building in Melbourne.

Internal Validation Challenges in Additive Manufactured Heat Exchangers

In high-performance thermal systems, the challenge is rarely just heat rejection. It is achieving thermal performance within strict constraints such as limited package space, fine internal geometries, structural durability requirements, and the need to verify hardware without damaging it.

For additively manufactured heat exchangers, these constraints become more pronounced because internal channels, wall thickness, and surface conditions directly influence thermal and hydraulic behaviour. If those features cannot be inspected with confidence, design validation, process control, and qualification all become harder to execute with certainty.

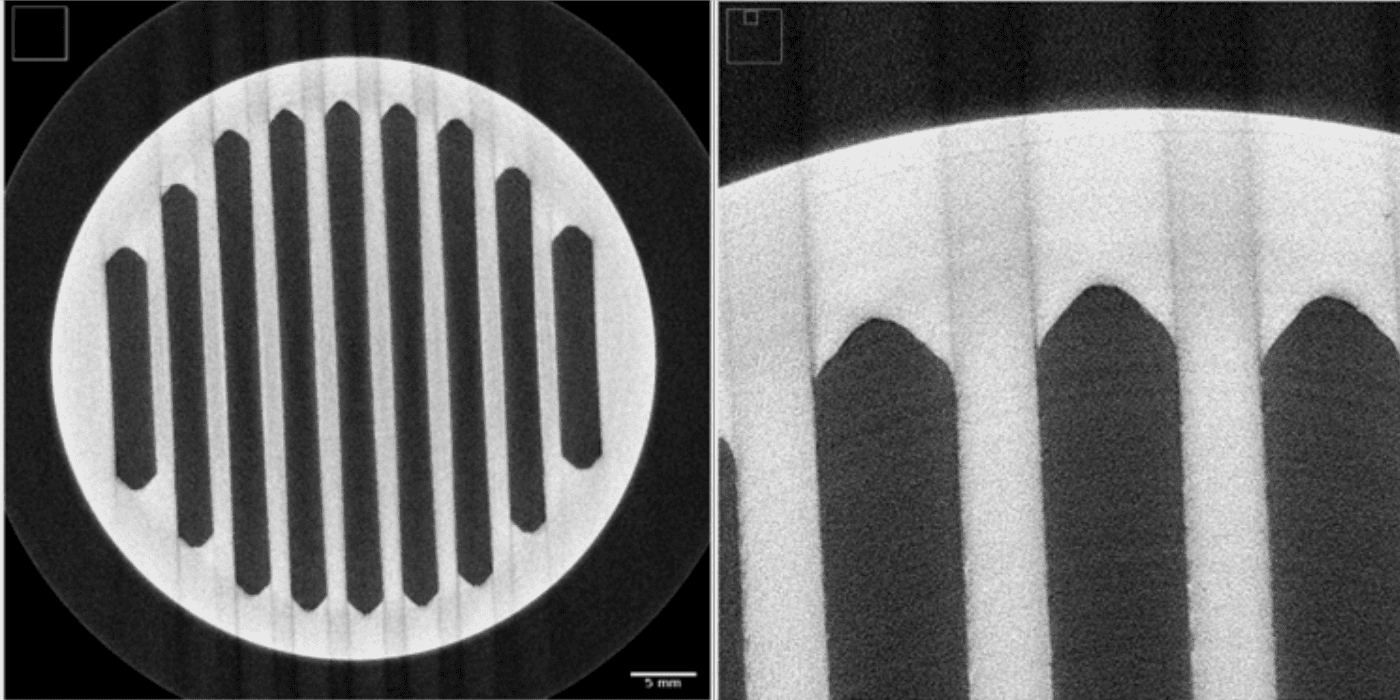

Synchrotron image showing a close-up detail of the internal heat exchanger channels.

Limitations of Conventional Inspection Methods

Traditional inspection methods can be effective for external features, but they often struggle when internal complexity increases. This leads to four common issues in advanced heat exchanger development:

1. Limited internal visibility, because critical flow paths and thin internal walls cannot be directly assessed using standard visual inspection methods.
2. Destructive sectioning can introduce artefacts, where the sectioning process itself alters or contaminates the features under investigation (for example, swarf or debris), and only provides a one-time snapshot on selected planes rather than the full three-dimensional geometry.
3. Hidden small defects, especially in deeply embedded regions where trapped powder, occlusions, or subtle surface imperfections remain undetected by conventional techniques.
4. Reduced qualification confidence, because incomplete internal verification makes it harder to correlate as-built geometry with simulation, test results, and long-term structural integrity.

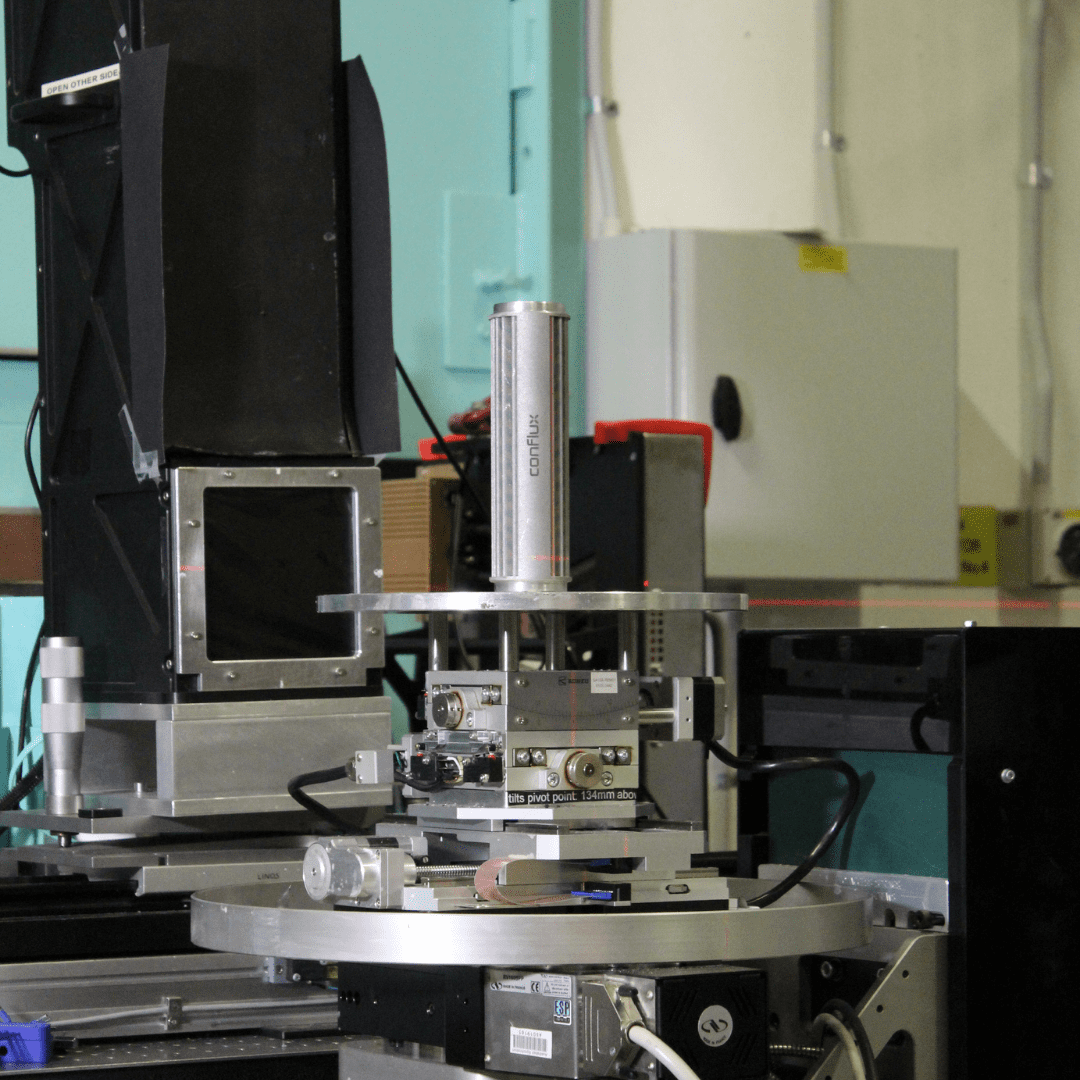

Setting up test heat exchanger samples at the Synchrotron.

Building a Non-Destructive Validation Framework for Additively Manufactured Heat Exchangers

A stronger validation architecture combines non-destructive internal imaging with design analysis, manufacturing feedback, and physical testing. One of the most advanced capabilities Conflux uses is the Australian Synchrotron, operated by ANSTO, where high-intensity X-ray imaging provides internal visibility that conventional inspection methods cannot achieve.

At the Australian Synchrotron, electrons are accelerated to near-light speed and guided through a circular orbit using magnetic fields, generating extremely bright X-ray beams for high-resolution imaging. Conflux uses the Imaging and Medical Beamline (IMBL) to generate detailed three-dimensional views of internal structures, enabling engineers to inspect complex channel geometries, wall thickness, and structural integrity without sectioning the component.

“Collaborating with Conflux highlights how advanced imaging can transition from research into real-world engineering applications. By combining ANSTO’s landmark research infrastructure capabilities like the Synchrotron with Conflux’s design and manufacturing expertise, we are enabling deeper insight into complex thermal components.” – Dr Robert Acres, Science Operations Manager, Australian Synchrotron.

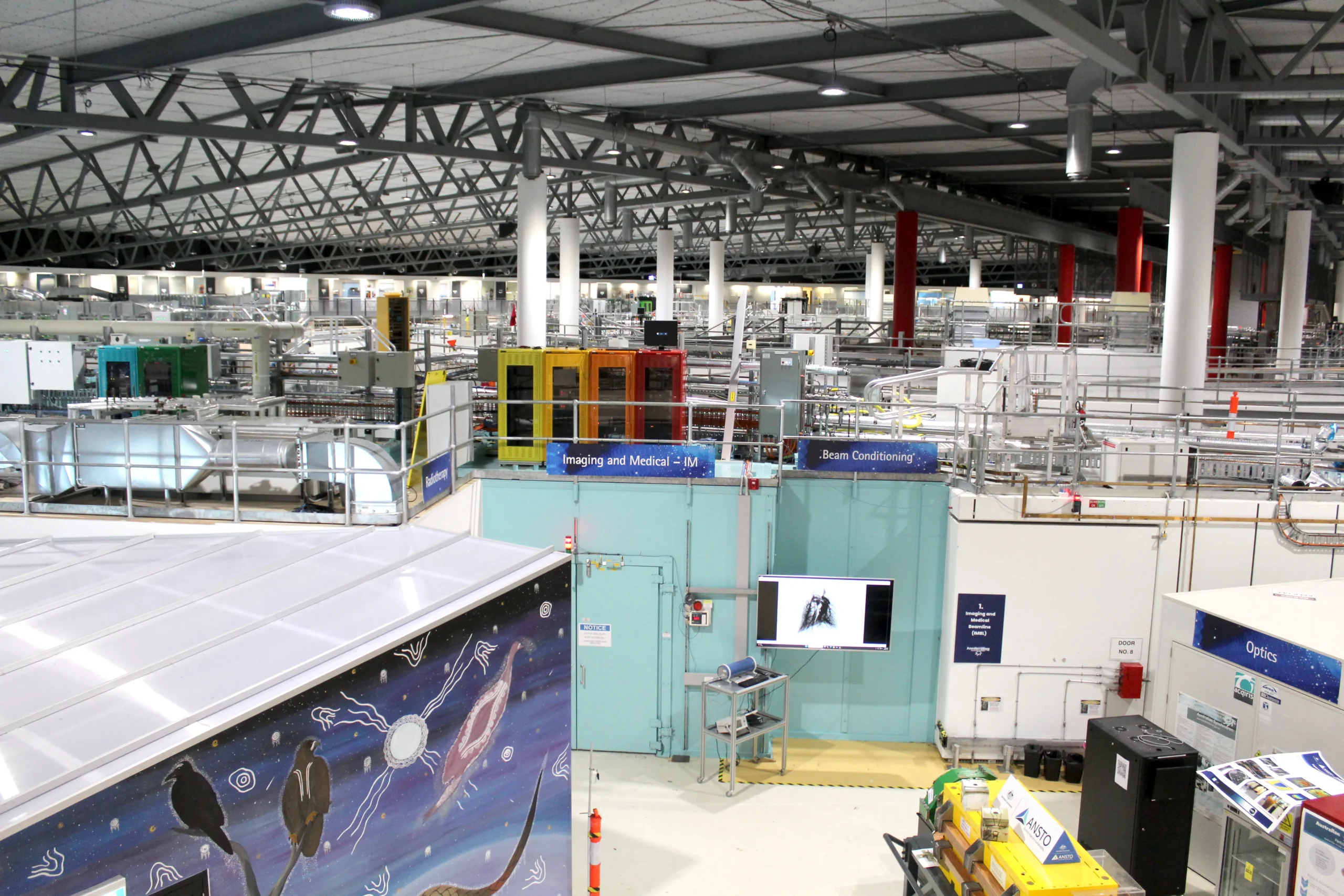

Inside the Synchrotron, showing its multiple beam lines in action.

For Conflux, this is not a standalone research exercise. Internal scan data can be compared with CAD geometry and simulation models, used to refine process parameters, and applied to improve cleaning, depowdering, dimensional control, and defect detection in future builds.

This work also sits within a broader validation ecosystem. Alongside ANSTO, Conflux also works with organisations such as CSIRO to access complementary inspection and R&D capabilities, ensuring the validation pathway is matched to the application, development stage, and level of insight required.

Case Study: Advanced Imaging for High-Performance Heat Exchanger Development

A representative high-performance cooling programme required a compact heat exchanger with complex internal features that could not be fully validated through conventional inspection alone. During development, advanced imaging revealed internal conditions that informed changes to manufacturing strategy and improved confidence in component integrity before broader qualification activity.

In a later production application, Conflux developed a bespoke oil cooler for the Pagani Utopia’s transmission oil system, where Conflux reported a 30% increase in heat rejection compared with the previous solution. Pagani also conducted road, track, and thermal validation activities to prove resilience under demanding operating conditions. Read the full media release here.

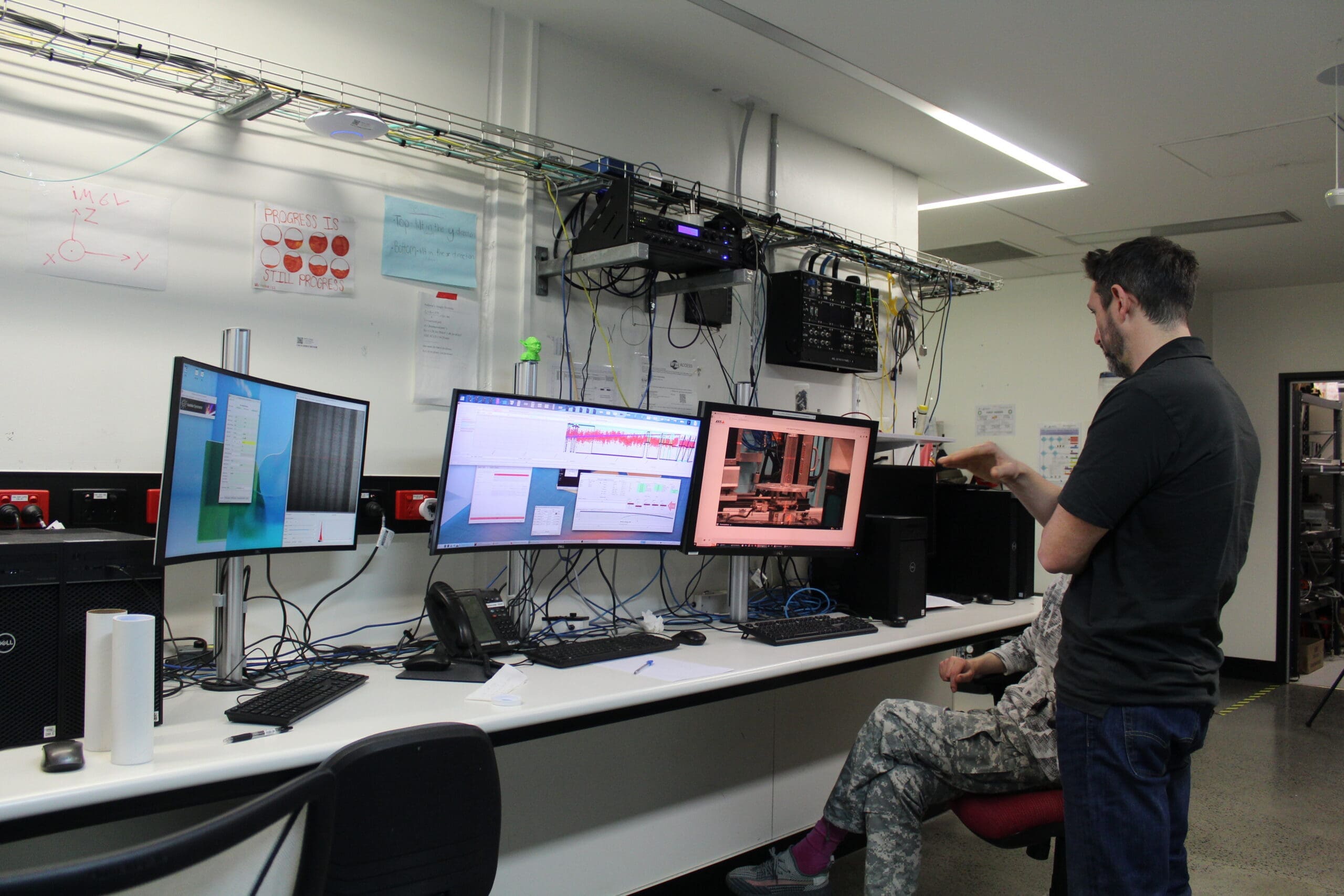

Validation data is assessed to evaluate internal geometry, structural integrity, and manufacturing consistency.

Key Takeaways for Internal Validation of Heat Exchanger Development and Qualification

Consider internal validation as part of thermal architecture development, not only as a final inspection step.

• Evaluate manufacturing and inspection capability together, because complex geometry only creates value when it can also be verified with confidence.
• Use validation data to improve the full development loop, from simulation fidelity to process optimisation and qualification readiness.

If you are developing compact, high-performance cooling hardware where internal geometry is critical to performance, contact Conflux to discuss your application and review the right validation pathway for your programme.
