Optimising Race Engine Oil Temperatures: Why a few degrees matter

How Oil Temperature Affects Race Engine Performance

Race engines live on a knife-edge. A few degrees too cool and oil remains sluggish carrying moisture and reducing protection. A few degrees too hot and it thins, breaks down chemically and accelerates wear. In that narrow 100–120°C window lies the difference between peak performance and mechanical failure.

At race speed, oil is more than a lubricant. It circulates through the engine oil cooling circuit absorbing and transferring heat while still protecting moving parts. Keeping it in that ‘Goldilocks’ zone unlocks consistent repeatable performance across every lap. That is why professional teams track oil temperature monitoring with the same scrutiny as boost pressure, tyre wear or fuel strategy. Stable oil temperature means power, endurance and reliability, the hallmark of any race engine oil cooling setup.

Source: Unsplash, by Jesper Giortz Behrens

Engine Oil Viscosity:  Why the 100-120°C Range Matters

Engine oil has two jobs: protect and control heat. It must form a stable lubricating film while flowing fast enough to extract heat from high-stress components operating at thousands of revolutions per minute. That balance only happens within its thermal sweet spot.

In this range oil moves quickly through tight clearances without sacrificing its protective barrier over pistons, bearings, and camshafts. Around 100–110°C most performance oils reach their optimal flow state, reducing internal drag and stabilising heat transfer before thermal spikes reach damaging levels.

Oil also functions as part of the lubrication and cooling system. In areas coolant cannot reach such as the crankcase and valvetrain it absorbs and transports heat to the exchanger. This stabilises engine temperature and keeps power delivery consistent lap after lap, improving engine reliability and cooling even under peak load.

The Consequences of Deviation

When oil exceeds 130°C it loses stability. Pressure drops, thin films may collapse and metal begins to contact metal. Friction rises, hotspots spread and in extreme cases components fail. Heat also accelerates oxidation, thickening the oil, forming deposits and blocking critical passages. Additives designed to prevent breakdown deplete rapidly shortening service life and reducing protection.

Cold oil brings its own risks. Below 100°C it flows too slowly to reach high-stress areas leaving bearings exposed during acceleration. Moisture and fuel do not evaporate leading to emulsification, reduced lubricity and long-term wear. Initial performance may feel strong but internal friction rises and fatigue builds with every cold start.

Outside the sweet spot every part of the engine pays the price. Bearings wear faster, deposits form and thermal efficiency drops. Consistent performance relies on precise oil temperature control and that depends on one system: the oil cooling system design.

Source: Unsplash, Sooi Meeus

Race Engine Oil Cooling: Heat Exchanger Technologies

Keeping oil within its target temperature band depends entirely on how efficiently heat can be extracted from the engine. In motorsport, where every lap pushes mechanical systems to their limits, the heat exchanger plays a decisive role in maintaining stability across the 100-120°C range. Most high-performance oil cooling race systems rely on one of two architectures: oil-to-air or oil-to-water. Each offers a different balance of simplicity, responsiveness and thermal control.

Oil-to-Air Oil Coolers: An Automotive Industry Standard

Oil-to-air exchangers remain common due to their simplicity. Hot oil passes through tubes while airflow over aluminium fins extracts heat. They are easy to package and operate independently from the coolant circuit, which makes them popular for retrofits and aftermarket setups.

However, their performance depends heavily on vehicle speed and ambient temperature. At low airflow or in cool conditions, they may underperform or over-cool the system. This makes it difficult to reach and maintain the critical 80–90°C warm-up target. Over long stints, especially in variable climates, this inconsistency becomes a performance liability.

Oil-to-Water Heat Exchangers for Race Engines: Performance Advantages

For professional teams chasing stability and precision, oil-to-water heat exchangers deliver clear performance benefits. Oil-to-water heat exchangers deliver greater precision. By transferring heat from oil into engine coolant before both fluids are cooled by their radiators, efficiency gains can be significant, with improvements up to 30 percent reported possible depending on operating conditions. This allows faster warm-up, better temperature stability and reduced reliance on external airflow.

Because both fluids share thermal load, oil and coolant temperatures remain closely aligned across the rev range. This improves reliability under sustained load and prevents over-cooling between runs, essential in a motorsport oil cooling package.

System formats include compact sandwich-plate units for direct mounting and remote shell-and-tube systems for engines with complex packaging. Both help maintain oil near the 100–110°C target zone lap after lap.

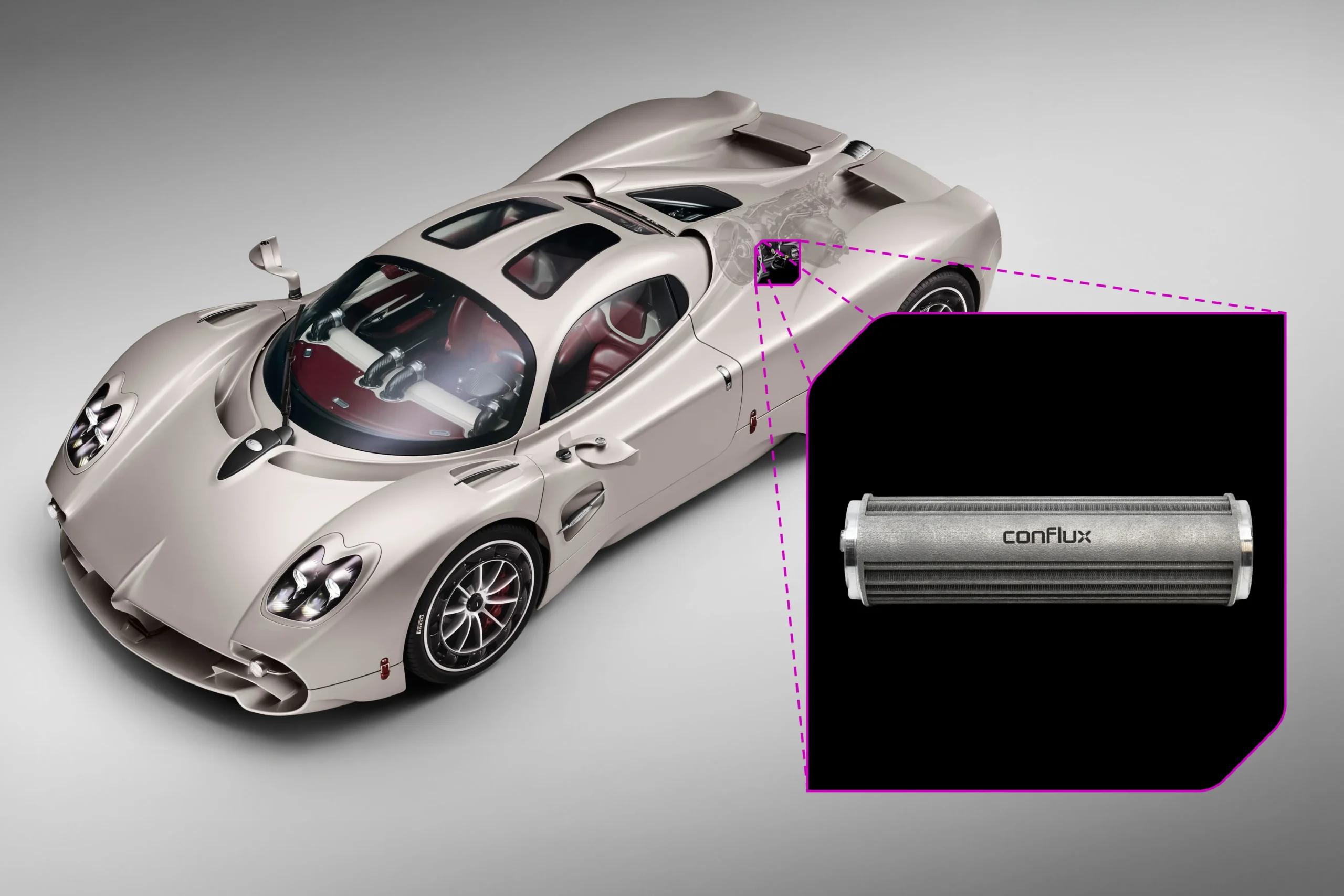

Pagani’s Utopia has a Conflux oil cooler inside it’s Xtrac transmission

Pagani’s Utopia hypercar showcases these principles through a bespoke cartridge heat exchanger developed by Conflux, engineered specifically to control transmission oil temperatures under extreme load while preserving drivability on the road. Its additive-manufactured core delivers a substantial increase in heat rejection over the previous design, giving engineers a tighter grip on the optimal temperature window without adding unnecessary mass or aerodynamic drag. By integrating this level of precision into a compact cartridge, the Utopia can sustain consistent performance from gentle cruising to repeated track laps, showing how advanced heat exchanger architecture can future-proof high-end race and hypercar programs.

High Oil Temperature Limits in Race Engines

Even with well-designed cooling, race engines will occasionally run hot. Teams may tolerate brief rises to 120–130°C with higher viscosity oils but only when pressure remains stable. A drop in pressure signals a loss of protection, and component stress escalates rapidly.

Around 121°C, the risk becomes critical. Beyond this point, cooldown laps are essential. As the heat climbs, oil loses load-bearing capability, exposing main and rod bearings to direct contact. Spalling, scoring and even bearing seizure can follow if temperatures continue to rise.

High temperatures also strain pistons rings, seals and valve train components. Oxidation rates double for every 15°C increase, accelerating oil breakdown and forming deposits that restrict flow and contaminate surfaces.

Cooldown laps restore balance. They allow heat to dissipate from areas that coolant cannot reach, such as bearings, galleries and turbo housings, reducing hot spot formation and preventing post-run coking. Without a controlled cooldown, trapped heat can carbonise oil in place and degrade long-term engine health. In motorsport, managing temperatures above 121°C is about more than protection. It is about preserving the engine’s ability to finish the race.

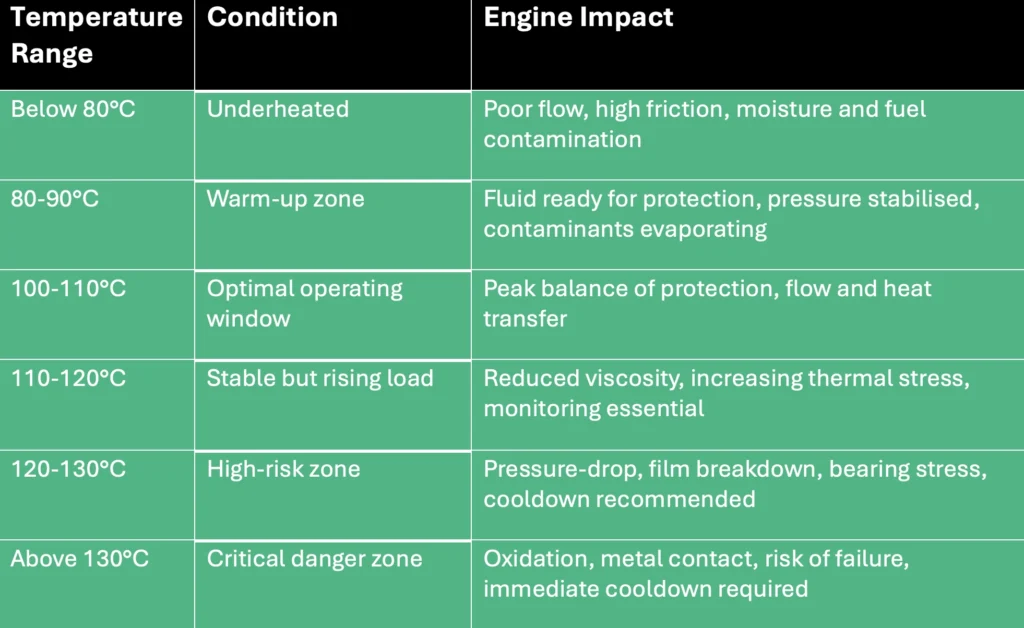

Table above shows oil temperature risk bands

Race Engine Oil Temperature Management: Finding the Sweet Spot

Racing is a test of control, and nothing demands more control than temperature. Precision is the difference between control and chaos, and oil temperature sits at the centre of that control. Inside the 100-120°C sweet spot oil does more than lubricate. It stabilises pressure, carries heat and protects components under the most demanding conditions. When teams hold the engine in this range every lap becomes predictable, every component behaves as designed and performance becomes repeatable.

Before each race, oil is typically warmed to around 80–90°C to ensure good flow and protection, then held near 100–110°C through peak load. These temperatures deliver the balance between efficiency and endurance.

Winning is not just about horsepower. It is about controlling heat from the formation lap to the finish line. These temperature rituals separate engineered reliability from mechanical luck. Oil temperature management is racing’s version of the Goldilocks principle: not too hot, not too cold but just right. It is not caution, it is race craft. Teams that understand it do more than finish. They protect power, extend engine life and create the conditions to win.
